4,495-20,300 psi at 73.9-14.1 us gpm

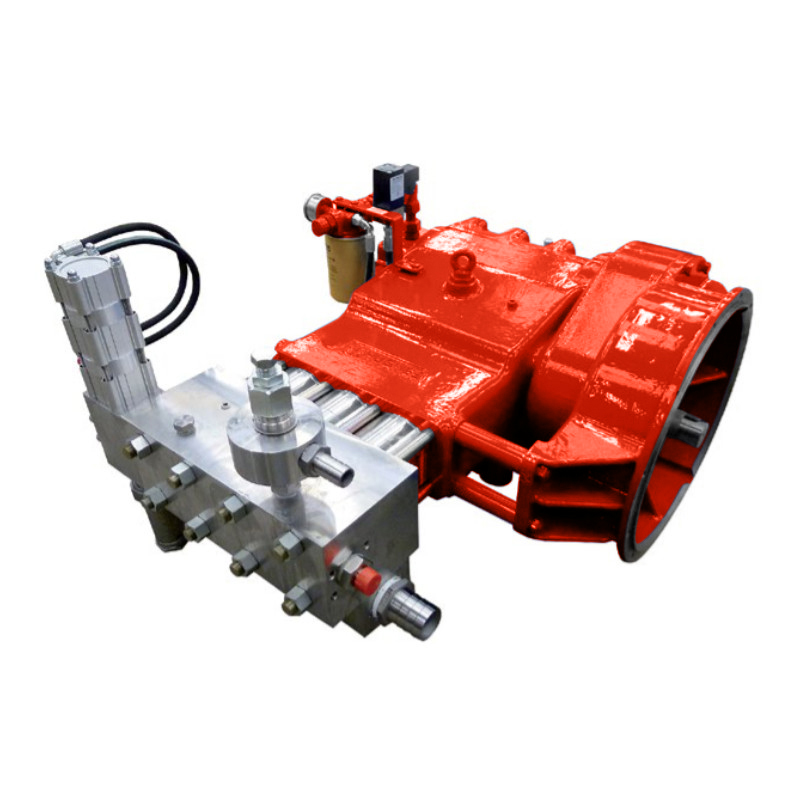

APEX Part # HPS2200
Standard Features:
- 5 cylinders for smooth output
- 431 stainless steel pump head
- Solid ceramic plungers & self-adjusting seals
- Interchangeable plunger kits
- Hardened, alloy steel crankshaft with heavy-duty roller and steel-backed white metal main bearings, supported between each connecting rod
- SG iron crankcase with pressure lubrication, filtration and oil cooling
- Forged connecting rods with low friction, shell-type big end bearings and lead bronze-lined small end bushes
- Gear driven, eliminating the need for belt drive
- Safety relief valve
- Pressure gauge
Build Options:
- 316 stainless/Duplex steel pump head for seawater applications
- Choice of gear ratio to suit diesel engine or electric motor drive
- SAE adaptor housings (SAE 1, 2 or 3) for flange mounting the pump to a diesel engine flywheel housing or electric motor
- Unloader valves
- Pressure adjusting valves (manual or actuated)
- Selector / Diverter valves (manual or actuated)
- Bare shaft pump only or complete unit build
- ATEX compliant
Operating Specifications:
- Maximum Flowrate
- 73.9 us gpm | 61.3 igpm at 4,495psi (279 lpm at 310 bar)
- Maximum Pressure
- 20,300 psi at 14.1 us gpm | 11.7 igpm (1400 bar at 53 lpm)
- Maximum Power
- 220hp (160 kW)
