3,190-20,300 psi at 49.0-7.8 us gpm

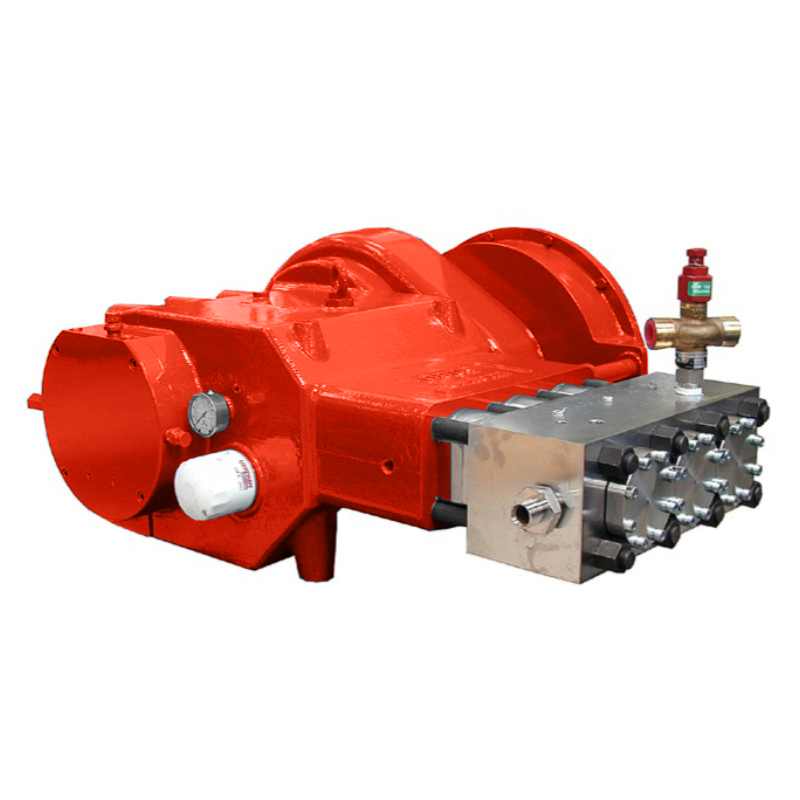

APEX Part # HPS3000
Standard Features:
• 431 stainless steel pump head
• Solid ceramic plungers & self adjusting seals
• Interchangeable plunger kits
• Hardened, alloy steel crankshaft with heavy-duty roller and steel-backed white metal main bearings, supported between each connecting rod
• SG iron crankcase with pressure lubrication, filtration and oil cooling
• Forged connecting rods with low friction, shell-type big end bearings and lead bronze-lined small end bushes
• Gear driven, eliminating the need for belt drive
• Safety relief valve
• Pressure gauge
Build Options:
• 316 stainless/Duplex steel pump head for seawater applications
• Choice of gear ratio to suit diesel engine or electric motor drive
• SAE 1 adaptor housing for flange mounting the pump to a diesel engine flywheel housing or electric motor
• Unloader valves
• Pressure adjusting valves (manual or actuated)
• Selector / Diverter valves (manual or actuated)
• Bare shaft pump only or complete unit build
• ATEX compliant
Operating Specifications:
• Maximum Flowrate
– 128.2 us gpm | 106.4 igpm at 3,625 psi (484 lpm at 250 bar)
• Maximum Pressure
– 20,300 psi at 22.5 us gpm | 18.6 igpm (1400 bar at 85 lpm)
• Maximum Power
– 300 hp (225 kW)
– 128.2 us gpm | 106.4 igpm at 3,625 psi (484 lpm at 250 bar)
• Maximum Pressure
– 20,300 psi at 22.5 us gpm | 18.6 igpm (1400 bar at 85 lpm)
• Maximum Power
– 300 hp (225 kW)
